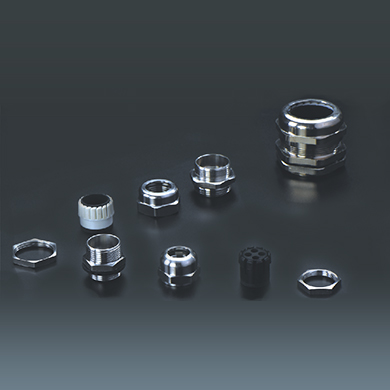

Stainless steel candle gland（PG、NPT）
不銹鋼電纜接頭（ＰＧ、ＮＰＴ）
|
德制螺牙 |
產品型號 |
適用電纜 |
螺紋外徑 |
螺紋長度 |
扳頭徑 |
|
PG7 |
BXG-PG7-5.3 |
3-5.3 |
12.5 |
8 |
17/17 |
|
BXG-PG7-8 |
4.5-8 |
12.5 |
8 |
17/17 |
|
|
BXG-PG7-6 |
3-6 |
12.5 |
8 |
14/14 |
|
|
PG9 |
BXG-PG9-5.3 |
3-5.3 |
15.2 |
8 |
18/17 |
|
BXG-PG9-8 |
4.5-8 |
15.2 |
8 |
18/17 |
|
|
PG11 |
BXG-PG11-7 |
4-7 |
18.6 |
9 |
22/22 |
|
BXG-PG11-10 |
6-10 |
18.6 |
9 |
22/22 |
|
|
PG13.5 |
BXG-PG13.5-9 |
5-9 |
20.4 |
9.5 |
24/24 |
|
BXG-PG13.5-12 |
7-12 |
20.4 |
9.5 |
24/24 |
|
|
PG16 |
BXG-PG16-11 |
7-11 |
22.5 |
9.5 |
26/26 |
|
BXG-PG16-12.5 |
9-12.5 |
22.5 |
9.5 |
26/26 |
|
|
PG21 |
BXG-PG21-16 |
12-16 |
28.3 |
12 |
32/32 |
|
BXG-PG21-18 |
14-18 |
28.3 |
12 |
32/32 |
|
|
PG29 |
BXG-PG29-22 |
16-22 |
37 |
12.5 |
41/41 |
|
BXG-PG29-25 |
18-25 |
37 |
12.5 |
41/41 |
|
|
PG36 |
BXG-PG36-26 |
20-26 |
47 |
14 |
57-52 |
|
BXG-PG36-31 |
24-31 |
47 |
14 |
57-52 |
|
|
PG42 |
BXG-PG42-32 |
25-32 |
54 |
15 |
64/62 |
|
BXG-PG42-39 |
31-39 |
54 |
15 |
64/62 |
|
|
PG48 |
BXG-PG48-45 |
36-45 |
59.3 |
16 |
70/78 |
|
NPT1/4 |
BXG-NPT1/4-5.3 |
3-5.3 |
13.5 |
8 |
17 |
|
BXG-NPT1/4-7.8 |
4.5-7.8 |
13.5 |
8 |
17 |
|
|
NPT3/8 |
BXG-NPT3/8-7 |
4-7 |
17.5 |
8 |
22 |
|
BXG-NPT3/8-10 |
6-10 |
17.5 |
8 |
22 |
|
|
NPT1/2 |
BXG-NPT1/2-8 |
5.5-8 |
21.22 |
10 |
26 |
|
BXG-NPT1/2-12 |
8.5-12 |
21.22 |
10 |
26 |
|
|
BXG-NPT1/2-14 |
7.0-14 |
21.22 |
10 |
26 |
|
|
NPT3/4 |
BXG-NPT3/4-16 |
12-16 |
26.56 |
14 |
32 |
|
BXG-NPT3/4-18 |
14-18 |
26.56 |
14 |
32 |
|
|
NPT1 |
BXG-NPT1-22 |
16-22 |
33.22 |
15 |
41 |
|
BXG-NPT1-25 |
18-25 |
33.22 |
15 |
41 |
螺紋規格：德制牙PG、美制牙NPT。
材 料：A、C、E部分由304不銹鋼制成，B、D部分由丁腈橡膠（NBR）制成。
工作溫度：靜態40～100，瞬時熱阻高達120；動態20～80，瞬時熱阻高達100。
特 點：夾緊模和橡膠件的特殊設計，夾持電纜的大范圍，超強的拉伸抗力，防水性，防塵性，耐鹽、酸、堿、醇、脂、通用溶劑的能力強。防護等級為IP68
顏色：黑色，灰色，以及特殊顏色，可按要求設計。
注：特殊尺寸和型號，請與我們聯系。
Thread spec.: PG、NPT。
Material: Parts A, C, E It is made of 304 stainless steel., parts B and D are made of nitrile butadiene rubber (NBR).
Working temperature: -40 to 100 in static state, instantaneous heat resistance up to 120; -20 to 80 in dynamic state. instantaneous heat resistance up to 100 centigrade.
Characteristics: Special design of clamping die and rubber part, large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof, and high ability to resist salt, acid, alkali, alcohol, grease and general solvent, Protection grade: IP68.
Color: Black, grey as well as special colors that can be designed at request.
Note:Special size and type,please contant us
